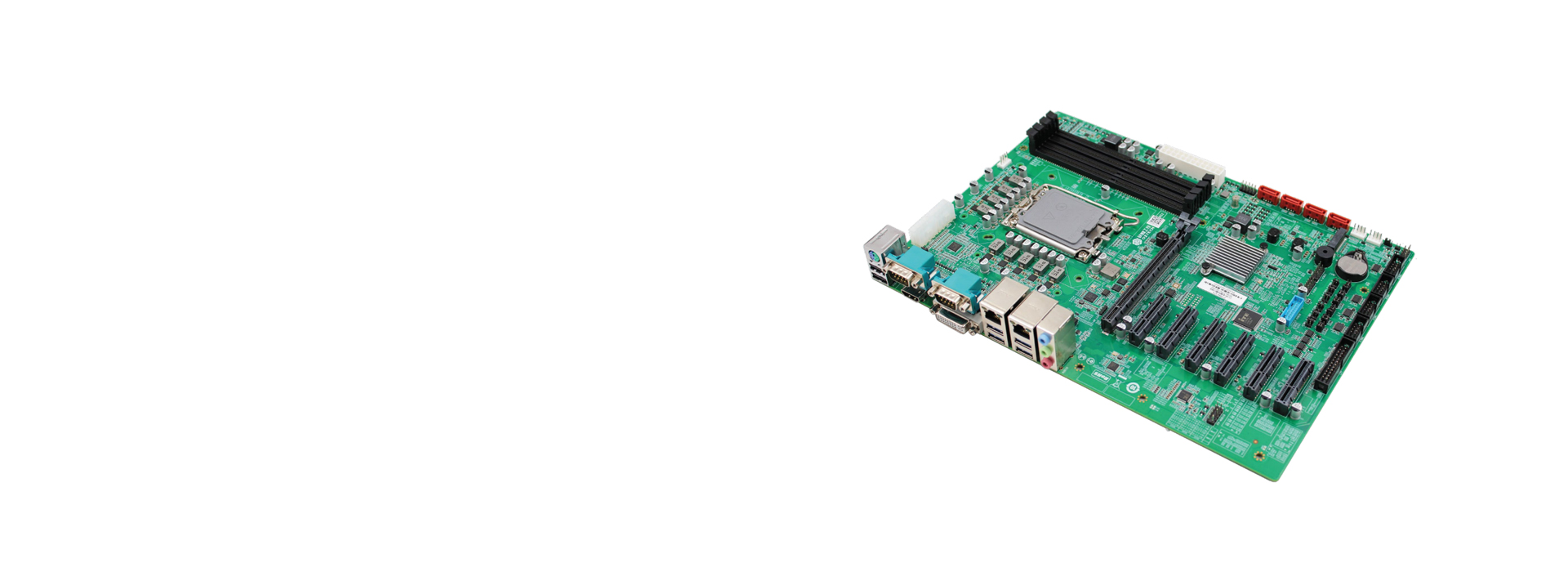

ALD-75 ATX嵌入式主板基于Intel Alder Lake-S系列处理器Z690/Q670/H670芯片组,支持四个UDIMM DDR4内存,拥有1x HDMI +1x DVI-I(VGA)显示接口,还具有2.5GbE双网口设计,它有4个SATA外加M.2.2280 NVMe用于储存;以及丰富的I/O接口,包括6xCOM、6 x USB2.0、6 x USB 3.2和高达7xPCIe以实现更大的扩展。ALD-75是各种工业应用的理想解决方案,并能在极端环境下保持稳定运行。

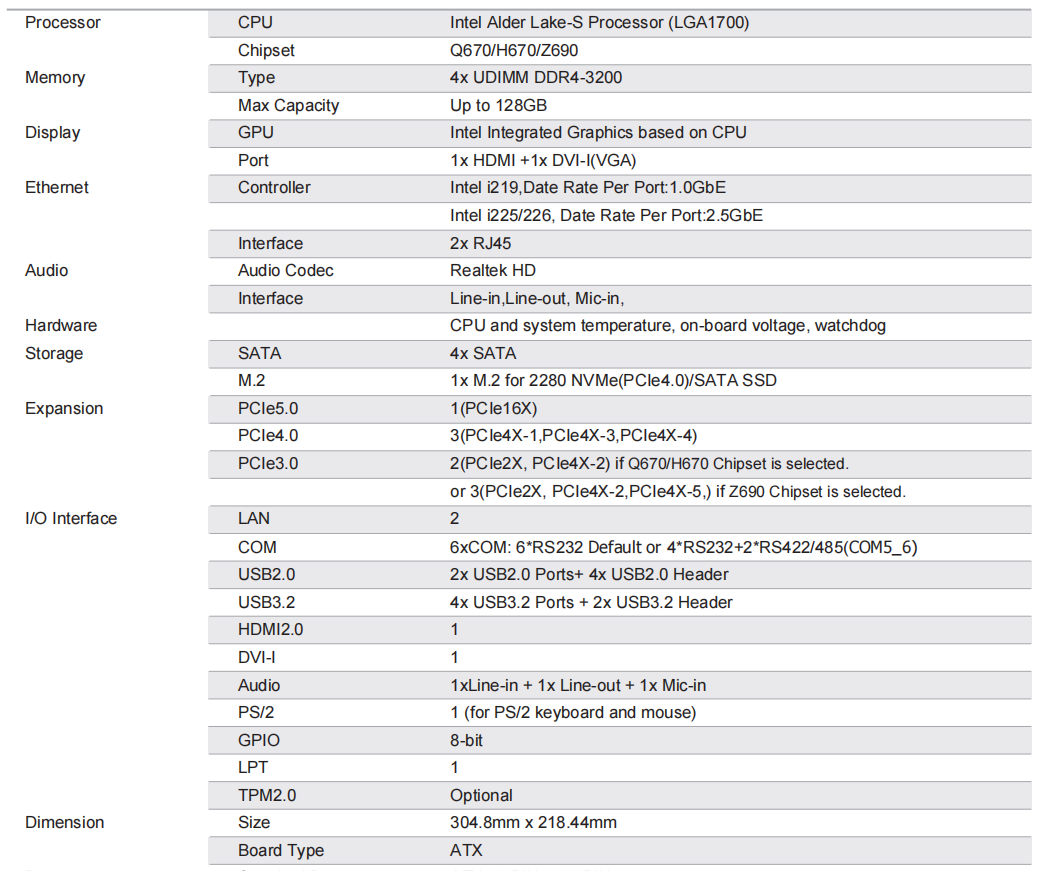

CPU: Intel Alder Lake-S Processor
Memory: 4x UDIMM DDR4 Up to 128GB
Display: Integrated Graphics display via HDMI+DVI-I(VGA)
Ethernet Controllers: 1xIntel i219+1xIntel i225/226
Storage: 1xM.2 for NVMe SSD, 4xSATA
Expansion: 1xPCIe2X, 1xPCIe16X, 5xPCIe4X(Z690) or 4xPCIe4X(Q670/H670)
Power: ATX_24PIN + 2x8PIN
